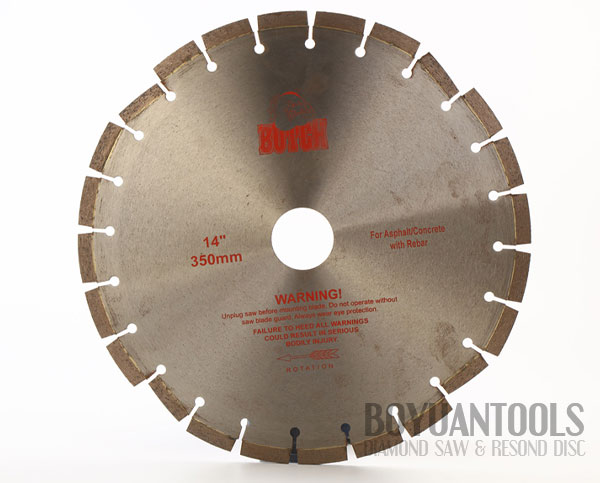

Brazed welded concrete saw

Boyuantools brazed welded concrete ,asphlt cutting  blade .

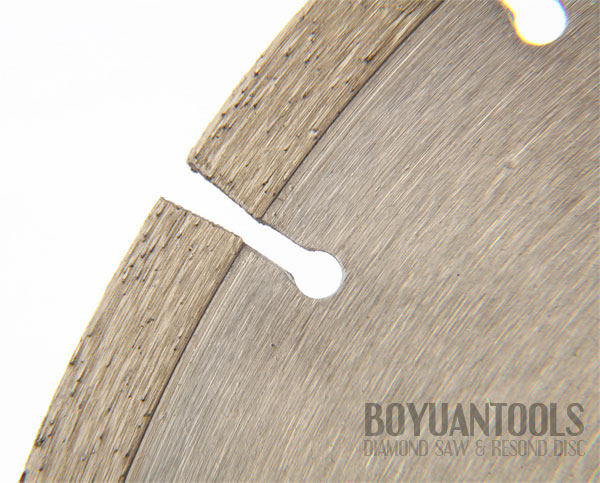

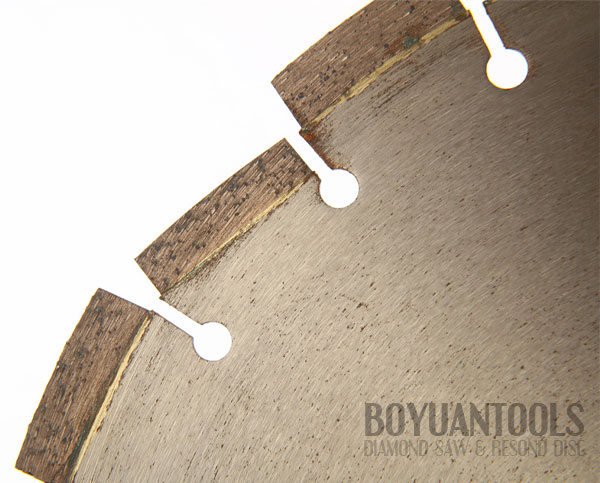

with NARROW  type ,U type,KEY type water groove.

High quality  for any hard concrete ,granite ,bricks ,asphlt ...cutting

Good quality,have good cutting performance in speed ,lifespan .

The size we can do from 300mm to 1600mm

Below size for you reference  first ,the real size we can do it as per your special demand .

Brazed welded concrete saw

Brazed welded concrete saw

Brazed welded concrete saw
Brazed welded concrete saw
Brazed welded concrete saw
Brazed welded concrete saw
Brazed welded concrete saw
Brazed welded concrete saw
Brazed welded concrete saw
Brazed welded concrete saw
Brazed welded concrete saw



Products code



Diamater

Arbor  Size of segment
(mm) Thick (mm) Width(mm)
BYBCON12-T 12" 300mm 25.4 3.0 7/10/12/15
BYBCON14-T 14" 350mm 25.4 3.2 7/10/12/15
BYBCON16-T 16" 400mm 25.4 3.4 7/10/12/15
BYBCON18-T 18" 450mm 25.4/50 4.0 7/10/12/15
BYBCON20-T 20" 500mm 50/60 4.0 7/10/12/15
BYBCON24-T 24" 600mm 50/60 4.2 7/10/12/15
BYBCON28-T 28" 700mm 50/60 4.8 7/10/12/15
BYBCON32-T 32" 800mm 50/60 6.0 7/10/12/15
BYCCON36-T 36" 900mm 80/100 6.5 7/10/12/15
BYCCON40-S 40" 1000mm 80/100 7.0 7/10/12/15
BYCCON48-T 48" 1200mm 80/100 8.0 7/10/12/15
BYCCON60-T 60" 1500mm 100/120 9.0 7/10/12/15
BYCCON64-T 64" 1600mm 100/150 9.0 7/10/12/15
▲Different arbor sizes and segment specification are available up on detail request
