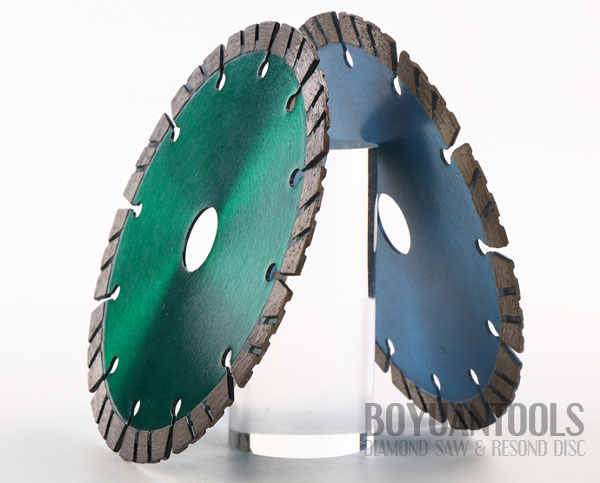

Boyuantools competitive universal stone blade .

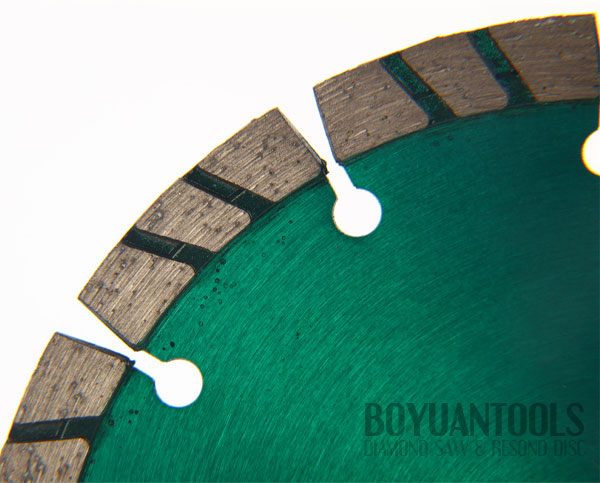

Hot pressed Dry-Turbo rim
High quality for all marble ,granite ,stone ...cutting
Good quality,have good cutting performance in speed ,lifespan .
The size we can do from 75mm to 350mm
Below size for you reference first ,the real size we can do it as per your special demand .
|
Products code |
Diamater |
Arbor | Size of segment | ||
| (mm) | Thick (mm) | Width(mm) | |||
| BYHSTO04-DT | 4" | 105mm | 20 | 1.8 | 7/10/12/15 |
| BYHSTO4.3-DT | 4.3" | 110mm | 20 | 1.8 | 7/10/12/15 |
| BYHSTO4.5-DT | 4.5" | 115mm | 22.23 | 2.0 | 7/10/12/15 |
| BYHSTO05-DT | 5" | 125mm | 22.23 | 2.0 | 7/10/12/15 |
| BYHSTO06-DT | 6" | 150mm | 22.23 | 2.2 | 7/10/12/15 |
| BYHSTO07-DT | 7" | 180mm | 22.23 | 2.2 | 7/10/12/15 |
| BYHSTO08-DT | 8" | 200mm | 22.23 | 2.4 | 7/10/12/15 |
| BYHSTO09-DT | 9" | 230mm | 22.23 | 2.6 | 7/10/12/15 |
| BYHSTO10-DT | 10" | 250mm | 25.4 | 2.8 | 7/10/12/15 |
| BYHSTO12-DT | 12" | 300mm | 20/50 | 3.2 | 7/10/12/15 |
| BYHSTO14-DT | 14" | 350mm | 20/50 | 3.4 | 7/10/12/15 |
| BYHSTO16-DT | 16" | 400mm | 20/50 | 3.8 | 7/10/12/15 |
| ▲Different arbor sizes and segment specification are available up on detail request | |||||
